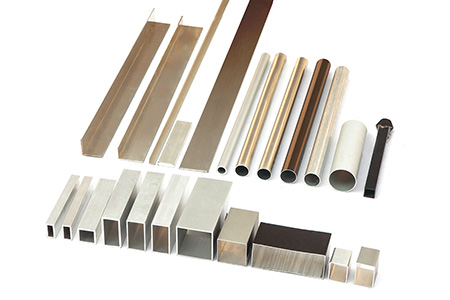

Product Name: Standard profiles

Product Line:
Standard profiles
Quality Standard:
GBT5237-2008
Price term:
Lington ingot + process fee or unit price/pc
Payment term:
TT，30% deposit，balance paid off before delivery.
Surface treatment:
Anodizing, powder coating, wooden grain, electrophoresis, polish, PVDF

Product Parameter:

Alloy#:	6063	6061	6463
Alloy Composition:	Si0.2-0.6，Fe0.35，Cu0.1，Mn0.1，Mg0.45-0.9，Cr0.1，Zn0.1，Ti0.1，others0.05，Al. remaining	Si0.4-0.8，Fe0.7，Cu0.15-0.4，Mn0.15，Mg0.8-1.2，Cr0.04-0.35，Zn0.25，Ti0.15，others0.05，Al. remaining	Si0.2-0.6，Fe0.15，Cu0.2，Mn0.05，Mg0.45-0.9，Zn0.05，others0.05，Al. remaining
Alloy & Temper:	T5；T6	T4；T6	T5；T6
Strength of Extension:（N/mm2）	160；205	180；265	150；195
Elongation After Fracture:（%）	8；8	16；8	8；10
Hardness(HW)	8；--	---	---
Profile Length(m)	≤7M
Standard film thickness（μm）	anodizing	8-12
	electrophoresis	15-21
	Powder coating wooden grain	40-120
	PVDF-2	25-35
	PVDF-3	30-45
	PVDF-4	50-70

Packing:
separate by paper, PE foam or film protection, bundle up by heat shrink film or kraft paper etc.
MOQ:
10tons or 1*20‘ FCL
Delivery Time:
15-30days after sample confirmed & deposit got.
Common Order Flow
1. Confirm material, size, tolerance, surface treatment, packing etc. all demand details & price.
2. got the mold cost, start mold making & sample production.
3. send sample to client to confirm
4. got deposit & start the mass production
5. got the balance payment and arrange the delivery.
Product Certification:
ROHS
Company Certification:
ISO9001
