Product Name: Aluminum Roller Shutter Door

Product Description

• Product Line:
  Aluminum Roller Shutter Door
• Quality Standard:
  GB5237
  GBT5237-2008
• Price term:
  FOBCIFEXW
  Lington ingot + process fee or unit price/pc
• Payment term:
  TT30% Deposit & balance againest BL copy.
  TT，30% deposit，balance paid off before delivery.
• Surface treatment:
  Custom Design like Powder Coating White Anodized BlackElectrophorese Champagne3D Wooden Narra
  Anodizing, powder coating, wooden grain, electrophoresis, polish, PVDF
• Processing:
  Aluminum Ingot Melting - Aluminum Roller Shutter Door Profile Extrusion - Surface Treatment
• Product Parameter:

  Alloy#:	6063	6061	6463
  Alloy Composition:	Si0.2-0.6,Fe0.35,Cu0.1,Mn0.1,Mg0.45-0.9,Cr0.1,Zn0.1,Ti0.1,others0.05,Al. remaining	Si0.4-0.8,Fe0.7,Cu0.15-0.4,Mn0.15,Mg0.8-1.2,Cr0.04-0.35,Zn0.25,Ti0.15,others0.05,Al. remaining	Si0.2-0.6,Fe0.15,Cu0.2,Mn0.05,Mg0.45-0.9,Zn0.05,others0.05,Al. remaining
  Alloy & Temper:	T5；T6	T4；T6	T5；T6
  Strength of Extension（N/mm2）	160；205	180；265	150；195
  Elongation After Fracture（%）	8；8	16；8	8；10
  Hardness(HW)	8；--	---	---
  Profile Length(m)	≤7M
  Standard film thickness（μm）	anodizing	8-12
  	electrophoresis	15-21
  	Powder coating, wooden grain	40-120
  	PVDF-2	25-35
  	PVDF-3	30-45
  	PVDF-4	50-70

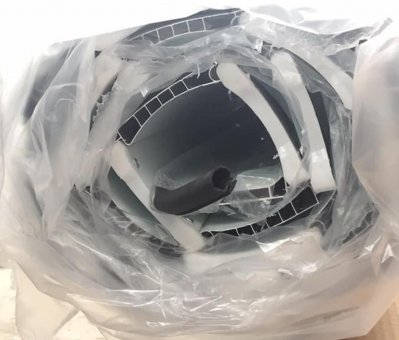

• Packing:
  separate by paper PE foam or film protection bundle up by heat shrink film or kraft paper etc.
  separate by paper, PE foam or film protection, bundle up by heat shrink film or kraft paper etc.
• MOQ:
  10tons or 1*20
  10tons or 1*20‘ FCL
• Delivery Time:
  15-30days after sample confirmed & deposit got.
  15-30days after sample confirmed & deposit got.
• Common Order Flow
  1. Confirm material size tolerance surface treatment packing etc. all demand details & price.
  2. got the mold cost start mold making & sample production.
  3. send sample to client to confirm
  4. got deposit & start the mass production
  5. got the balance payment and arrange the delivery.
  1. Confirm material, size, tolerance, surface treatment, packing etc. all demand details & price.
  2. got the mold cost, start mold making & sample production.
  3. send sample to client to confirm
  4. got deposit & start the mass production
  5. got the balance payment and arrange the delivery.

• Product Certification:
  ROHS GB/T 5237.
  ROHS
• Company Certification:
  ISO9001 ISO14001OHSAS18001
  ISO9001
