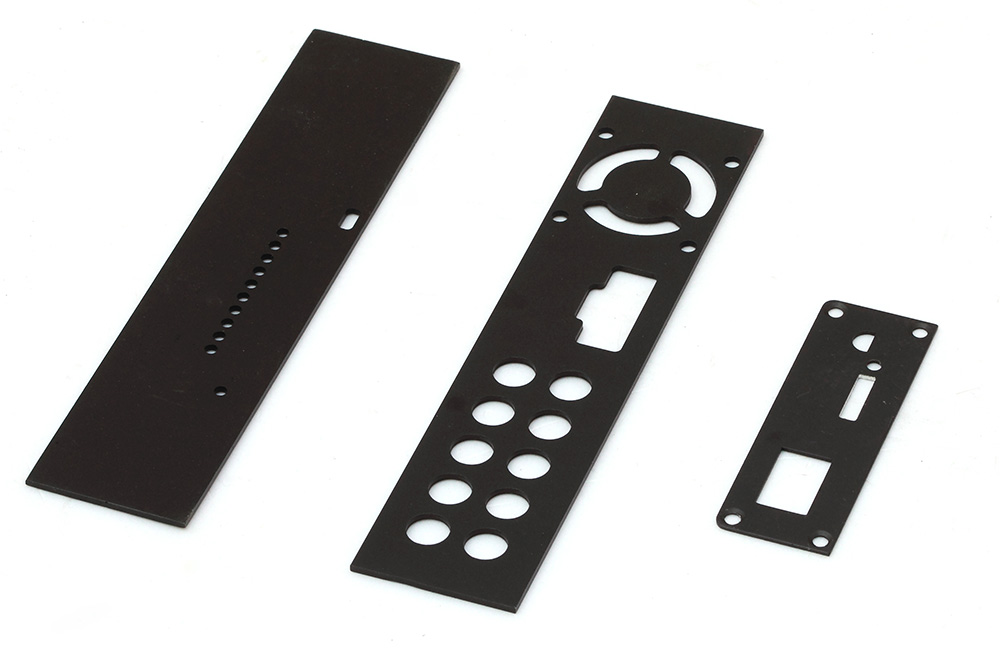

Product Name: Control panel 5

Product Description

• Product Line:
  Others
• Quality Standard:
  GBT5237-2008
• Price term:
  Unit price/pc
  Lington ingot + process fee or unit price/pc
• Payment term:
  TT，30% deposit，balance paid off before delivery.
• Surface treatment:
  Anodizing, powder coating, wooden grain, electrophoresis, polish, PVDF
• Processing:
  Al. sheet punching - Surface treatment
• Product Parameter:

  Alloy#:	1100	3003
  Alloy Composition:	Si0.45, Fe0.35, Cu0.05-0.20, Mn0.035, Zn0.10, V0.05, Al. remaining	Si0.60, Fe0.70, Cu0.05-0.20, Mn1.0-1.5, Zn0.10, others0.05, Al. remaining
  Alloy & Temper:	F state O state，H12-H112	F state O state，H12-H112
  Strength of Extension:（N/mm2）	75-165	100-210
  Elongation After Fracture:（%）	1-9	1-10
  Hardness(HW)	---	---
  Profile Length(m)	≤7M
  Standard film thickness（μm）	anodizing	8-12
  	electrophoresis	15-21
  	Powder coating wooden grain	40-120
  	PVDF-2	25-35
  	PVDF-3	30-45
  	PVDF-4	50-70

  Alloy#:	6063	6061	6463
  Alloy Composition:	Si0.2-0.6,Fe0.35,Cu0.1,Mn0.1,Mg0.45-0.9,Cr0.1,Zn0.1,Ti0.1,others0.05,Al. remaining	Si0.4-0.8,Fe0.7,Cu0.15-0.4,Mn0.15,Mg0.8-1.2,Cr0.04-0.35,Zn0.25,Ti0.15,others0.05,Al. remaining	Si0.2-0.6,Fe0.15,Cu0.2,Mn0.05,Mg0.45-0.9,Zn0.05,others0.05,Al. remaining
  Alloy & Temper:	T5；T6	T4；T6	T5；T6
  Strength of Extension（N/mm2）	160；205	180；265	150；195
  Elongation After Fracture（%）	8；8	16；8	8；10
  Hardness(HW)	8；--	---	---
  Profile Length(m)	≤7M
  Standard film thickness（μm）	anodizing	8-12
  	electrophoresis	15-21
  	Powder coating, wooden grain	40-120
  	PVDF-2	25-35
  	PVDF-3	30-45
  	PVDF-4	50-70

• Packing:
  each pc a plastic bag & then pack in carton box.
  separate by paper, PE foam or film protection, bundle up by heat shrink film or kraft paper etc.
• MOQ:
  10000pcs
  10tons or 1*20‘ FCL
• Delivery Time:
  15-30days after sample confirmed & deposit got.
• Common Order Flow
  1. Confirm material, size, tolerance, surface treatment, packing etc. all demand details & price.
  2. got the mold cost, start mold making & sample production.
  3. send sample to client to confirm
  4. got deposit & start the mass production
  5. got the balance payment and arrange the delivery.

• Product Certification:
  ROHS
• Company Certification:
  ISO9001
